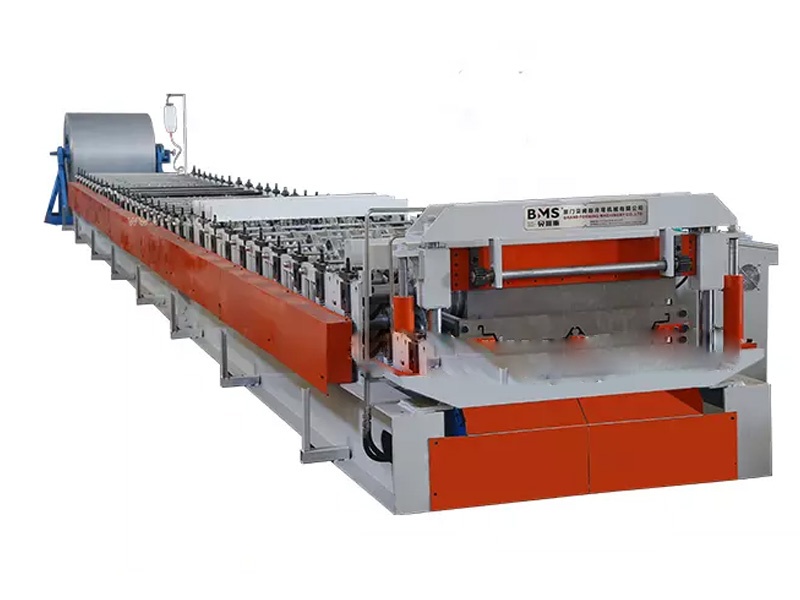

KOMET 840 Solar Roof Roll Forming Machine

Profile



Product Description
No.              Main Parameters                  Roll Forming Mill Parameters
1. Material Thickness 0.6mm Forming Stations 24 Stands
2. Feeding Width 1000mm Body Frame H350
3. Application Material Aluminized zinc sheet Side Wall Thickness Q235 t 18mm
4. Electrical Standard 380V/50HZ/3PH Shaft Diameter 45#Steel, φ70mm
5. Cutter material

Cr12 with quenching

 Main Motor Power 11KW
6. Yield Strength 350Mpa Screw Bolts Grade 8.8
7. Forming Speed 15-20m/min Effective Width 740mm
8. Control System PLC Control System Roller

45#Steel, precision machined, hard Chrome Coated
9. Hydraulic Motor 5.5kw Machine Color Blue+Black+Orange
10. Testing Material BMS Will Provide The Size of Feeding Material to Purchase that 2 Weeks Before Machine Testing

Work Flow

Uncoiler → Manual Pre-cutter → Roll Forming System → Hydraulic Post-cutter→ PLC Control System → Exit Rack
