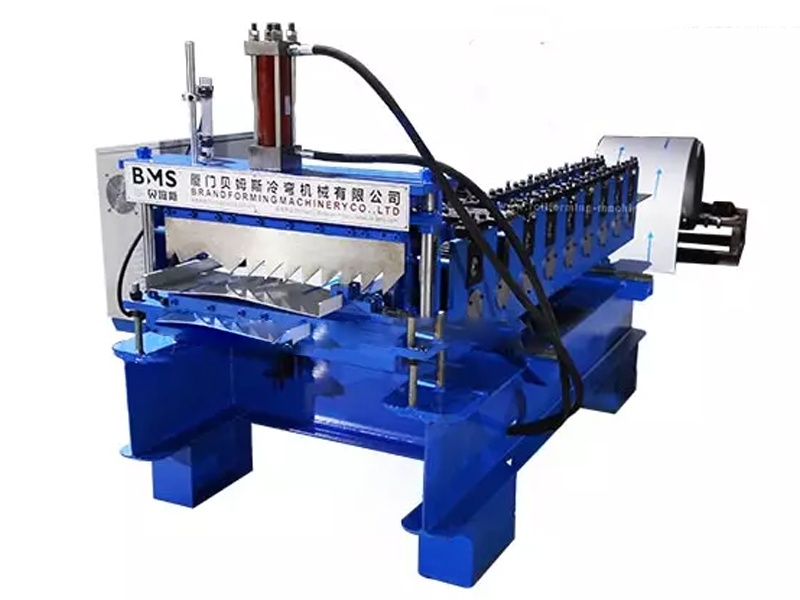

Metal Snap Lock Roll Forming Machine for Roofing Sheet

Metal Snap Lock Roll Forming Machine for Roofing Sheet

Metal Snap Lock Roll Forming Machine for Roofing Sheet

The products produced by the machine are suitable for building wall decoration, interior decoration, and packaging of various shapes. It can also be used for walls and kitchen and bathroom ceilings. Its super cost-effectiveness makes it a leader in decorative materials

Profile

No.               Main Parameters                  Roll Forming Mill Parameters
1. Material Thickness 0.7-1.5mm Forming Stations

9-steps
2. Feeding Width According to the drawing Body Frame H300
3. Application Material



Al-Mg-Mn alloy&PPGI

 Side Wall Thickness

16mm
4. Electrical Standard 380V50Hz/3Ph Shaft Diameter Cr40, φ40mm
5.

Decoiler Diameter





5T-600MM

 Main Motor Power

4KW
6. Yield Strength Q235、3004H24 Screw Bolts Grade 8.8
7.

Forming Speed



15-20m/min



Effective Width



According to the drawing
8. Control System PLC Control System Roller



45# Steel,precision machined
9. Hydraulic Motor 2.2KW Machine Color Blue+Black+Orange
10. Testing Material BMS Will Provide The Size of Feeding Material to Purchase that 2 Weeks Before Machine Testing

Work Flow

Decoiler (5Tons) → Feeding Device→ Main Roll Forming Mill → Hydraulic Post Cutting Device  →  PLC Control System → Hydraulic Station→Exit Rack*3
