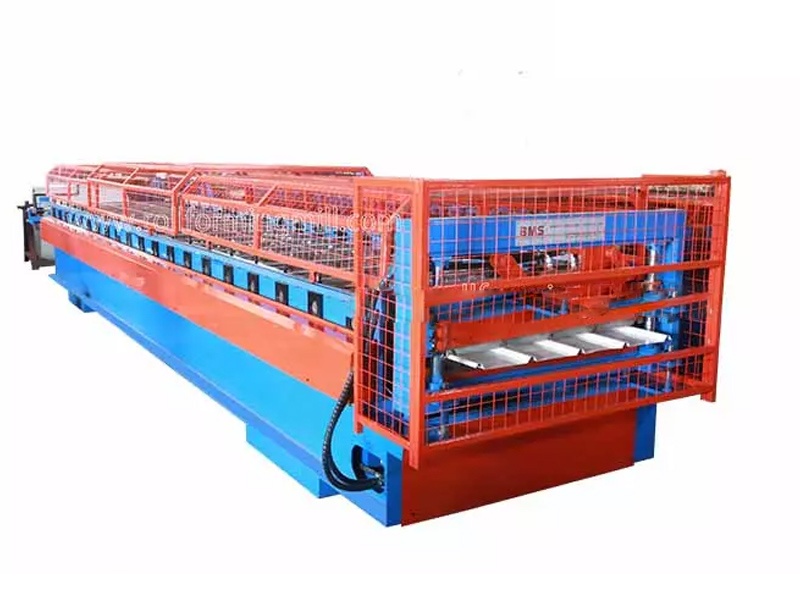

Spandek Roofing Profile Roll Forming Machine 1220

Profile

Product Description

Material	Applicable material	Galvanized Steel(GI)
	Material thickness	0.3-0.8mm
	With yield strength	235-345Mpa
Coil	Feeding width	1250
	Coil ID range	508mm±30mm
	Capacity	Max. 5 Ton.
Machine	Base Frame	H450
	Roller Material	45# steel, CNC lathes, Heat Treatment.
	Roller station	20-steps to form
	Shaft diameter	ф75mm,High Frequency Processing
	Forming Speed	15-20m/min
Cutter	Hardness	Heat treatment to HRC58-62 degree
Cutter	Cutting tolerance	≤±1mm
Power	Driving way	Gear/Sprocket transmission
	Main motor	7.5KW,Frequency Speed Control
	Pump motor for cutter	4KW
PLC Control System	Inverter	Schneider
	Touch Screen	Schneider
	Encoder	KOYO (Japan brand) or OMRON (Japan brand)
	Control Voltage	24V

Features

1. Hot Sales in Philippines.

2. Hard-Chromed Tooling for Long Working Life.

3. Optional Roof Sheet Crimping Curving Machine

4. Optional automatic stacker, improve working efficiency. save labor cost, and help you improve competitive advantage.

Work Flow

Manual Decoiler→Manual Pre Cutting Device→Feeding Guide Device →Roll Forming System→ Hydraulic Post Cutting Device→Exit Rack→ PLC Control System
