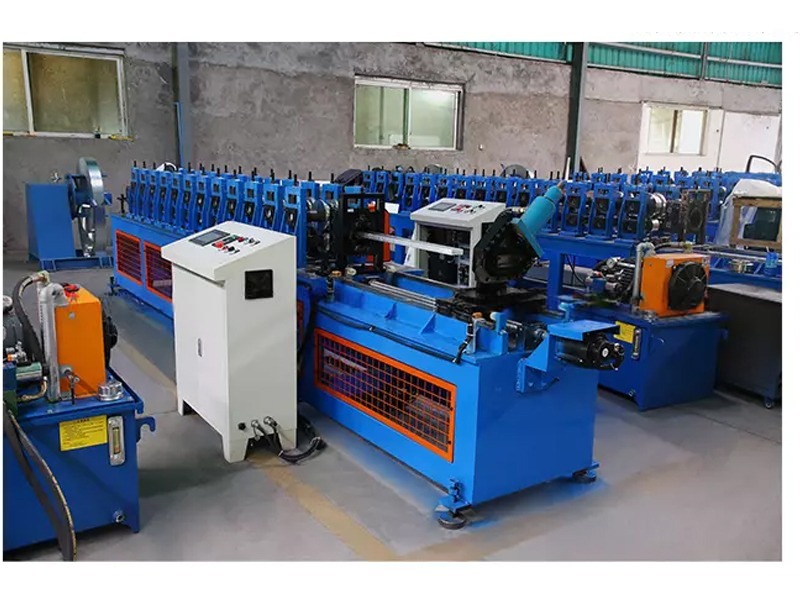

Quick-change Type Stud And Track Roll Former

Quick-change Type Stud And Track Roll Former

Automatic Quick-change Type 120M/Min=400 Fpm

Profile



No.               Main Parameters                  Roll Forming Mill Parameters
1. Material Thickness 0.4-1.0mm Forming Stations 14-step
2. Feeding Width of

Bottom Heigth &

Waist  Heigth

41/63.5/92/152.4;

31.8

Base H450, Rectangular Tube
3. Application Material  Galvanized Coil Side Wall Thickness  Q235 t18mm
4. Electrical Standard 220v/3ph/60Hz Shaft Diameter Cr40# Steel, φ60mm
5. Manual Decoiler Diameter 420-φ520mm Main Motor Power  18.5 KW
6. Yield Strength 240-390Mpa Screw Bolts Grade 8.8
7. Forming Speed 0-100m/min Effective Width As Customer Design
8. Control System PLC Control System Roller Cr12mov, CNC Lathes, Hear Treatment, HRC58-62
9. Servo Motor 4.4KW/2.9KW Machine Color Blue+Black+Orange
10. Testing Material BMS Will Provide The Size of Feeding Material to Purchase that 2 Weeks Before Machine Testing

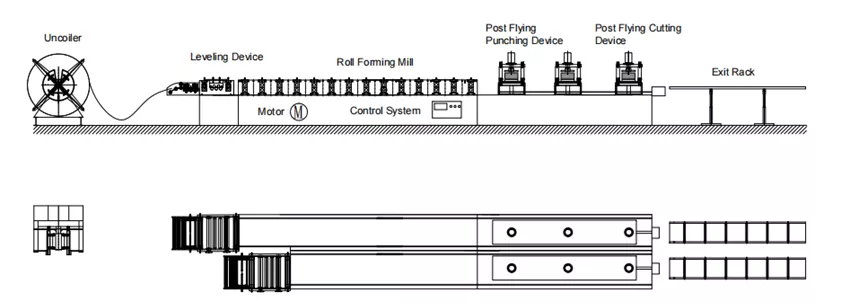

Work Flow

Dual-Head Uncoiler→Feeding/Leveling→Rolling Forming Mill→Post Flying Punching/ Post Flying Cutting→Exit Rack
