Profile
| No. |
Main Parameters |
Roll Forming Mill Parameters |
| 1. |
Material Thickness |
0.2-0.5mm |
Forming Stations |
12-step |
| 2. |
Feeding Width |
According to the drawing |
Body Frame |
European free standing structure |
| 3. |
Application Material |
Galvanized Coil |
Side Wall Thickness |
35mm |
| 4. |
Electrical Standard |
220V60Hz/3Ph |
Shaft Diameter |
45# Steel, φ50mm |
| 5. |
Manual Decoiler Diameter |
3T-300MM |
Main Motor Power |
7.5 KW |
| 6. |
Yield Strength |
G550Mpa |
Screw Bolts |
Grade 8.8 |
| 7. |
Forming Speed |
40m/min |
Effective Width |
As Customer Design |
| 8. |
Control System |
PLC Control System |
Roller |
Cr12(=D3 Steel) |
| 9. |
Hydraulic Motor |
5.5KW |
Machine Color |
Blue+Black+Orange |
| 10. |
Testing Material |
BMS Will Provide The Size of Feeding Material to Purchase that 2 Weeks Before Machine Testing |

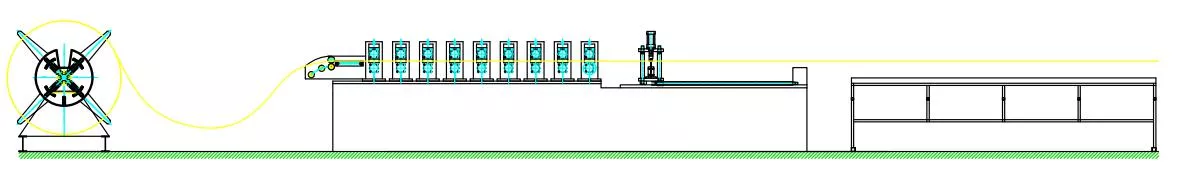

Work Flow
Manual Decoiler (3Tons) → Feeding Guide→ Main Roll Forming Mill → Post Flying Cutting Device → PLC Control System →Exit Rack
