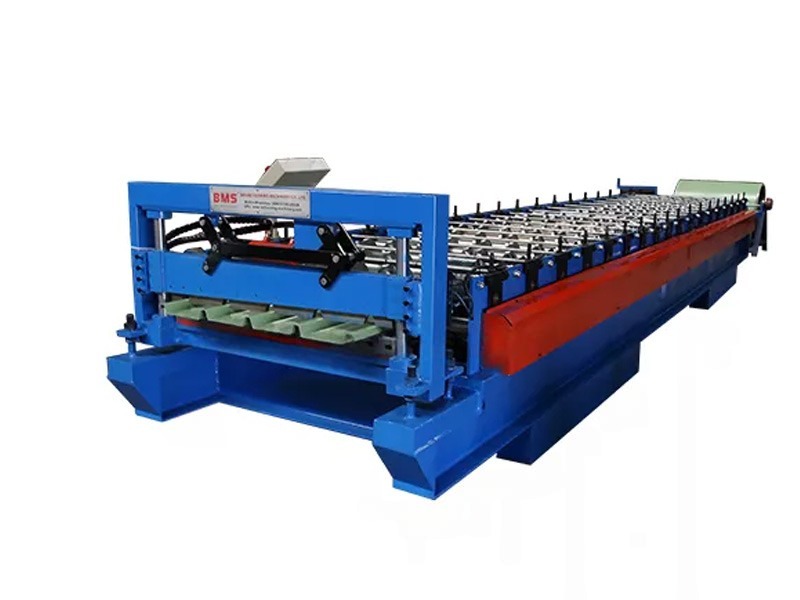

Aluminum Roof Panel Roll Forming Machine

Aluminum Roof Panel Roll Forming Machine

Easy to operate and running stable.

Technical Parameter

No. Main Parameters   Roll Forming Mill Parameters
1.Material Thickness

0.9mm

Forming Stations

16-step

2.

Feeding Width

1220mm

Body FrameH350
3.Application Material

Aluminum Coil

Reducer

R series

4.

Electrical Standard

415V/50Hz/3Ph

Shaft Diameter45# Steel, φ70mm
5.

Manual Decoiler Diameter

508±30 mm

Main Motor Power

 5.5 KW

6.Yield Strength

300Mpa

Screw BoltsGrade 8.8
7.

Forming Speed

15-20m/min

Effective Width

1000mm

8.Control SystemPLC Control System  Roller

Cr12 Mov, CNC Lathes, Hear Treatment, HRC58-62

9.Hydraulic Motor2.2KWMachine Color

Blue+Black+Orange

10.Testing Material

BMS Will Provide The Size of Feeding Material to Purchase that 2 Weeks Before Machine

Work Flow

Manual Decoiler (5Tons) → Feeding Guide Device → Main Roll Forming Mill → Hydraulic Post Cutter → PLC Control System  →Exit Rack



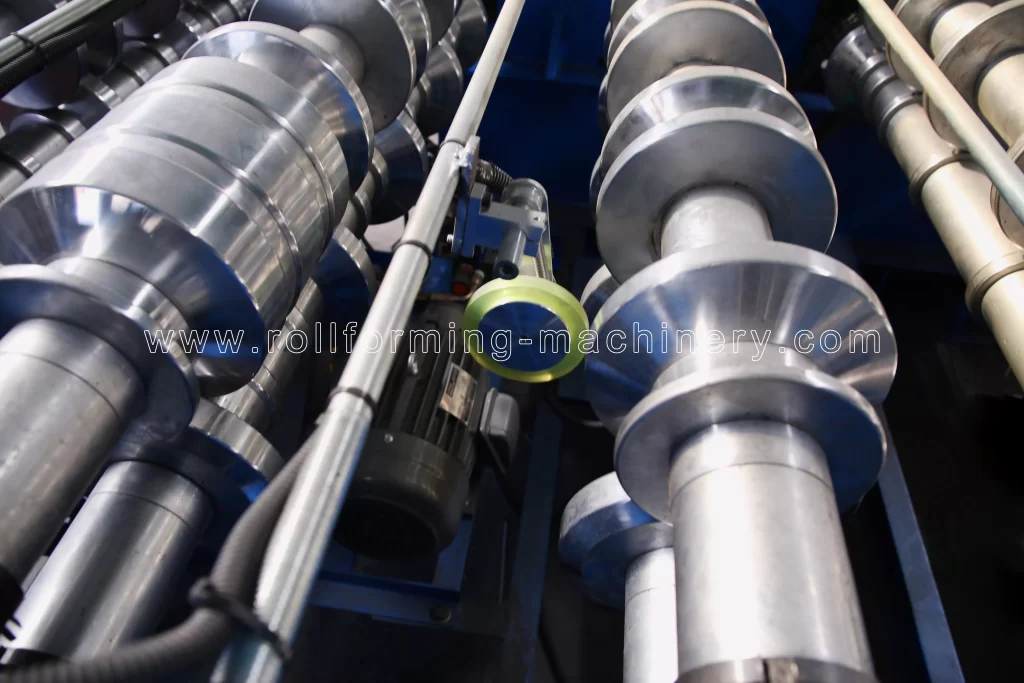

Encoder

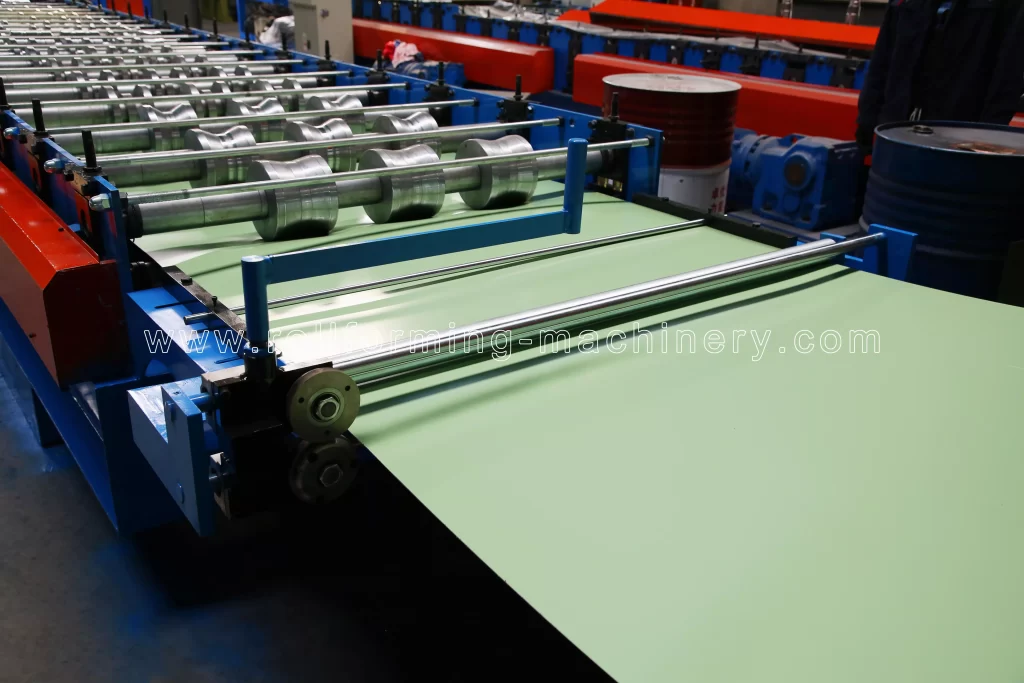

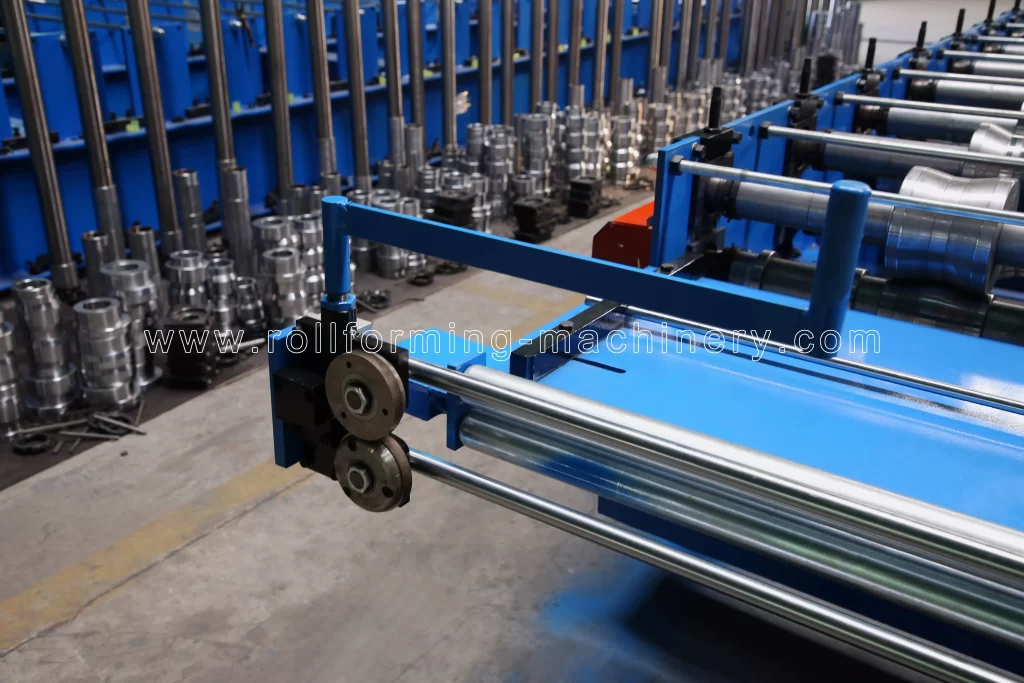

Feeding Guide device

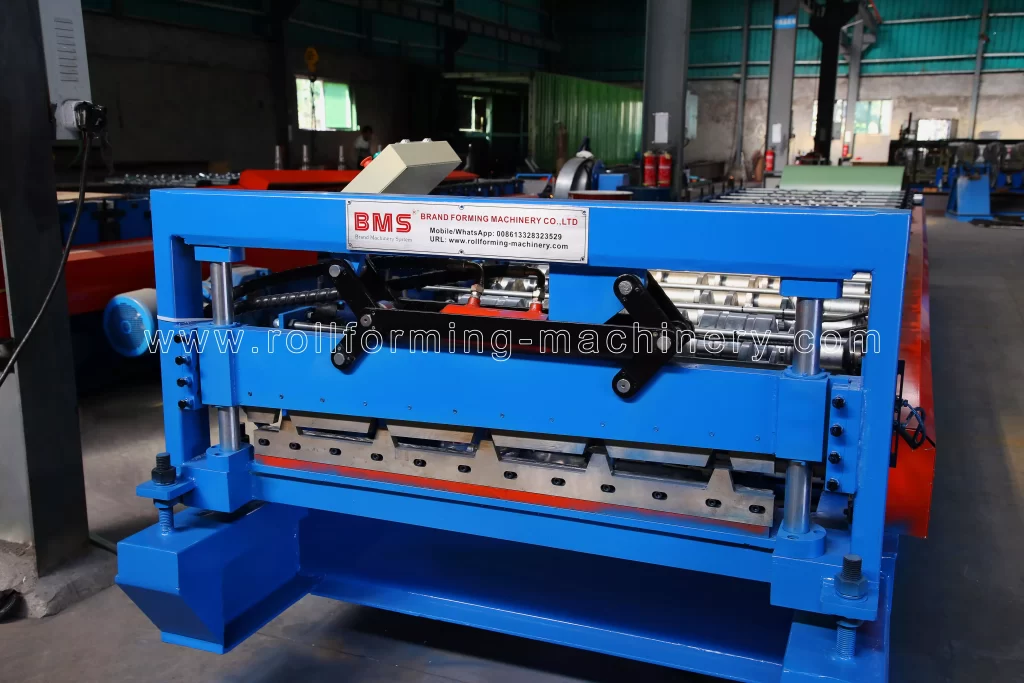

Hydraulic Post Cutter
Manual Pre-Cutter

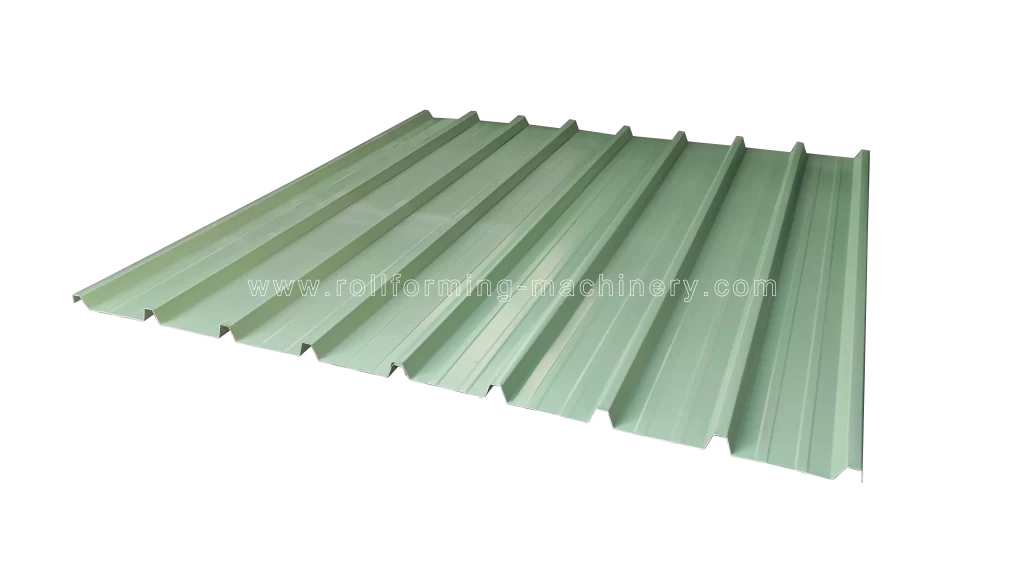

Machine Produced Products
