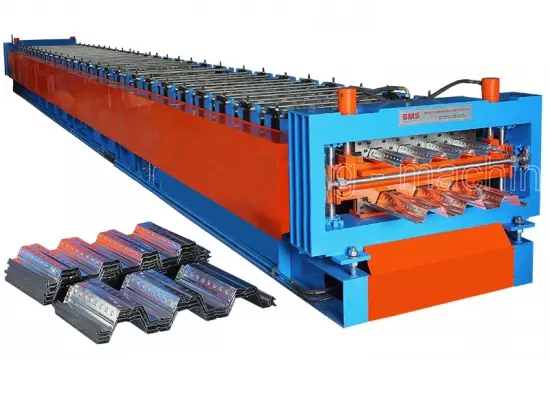

New Product AUTO Double Layer Floor Decking Roll Forming Machine

Profile









Product Description
Material Applicable material Galvanized Steel(GI)
Material thickness 0.8-1.5mm


With yield strength

 550Mpa
Coil Feeding width 1220mm
Coil ID range 508mm±30mm
Capacity Max. 5 Ton.
Machine Base Frame H450 type steel by welding.
Side wall thickness Q235 t20mm
Roller Material 45# Steel,Hard Chrome Coated
Roller station 26/27-steps to form
Shaft diameter ф80/95mm,High Frequency Processing


Cutter

 Hardness Heat treatment to HRC58-62 degree
Cutting tolerance ≤±1mm
 Power Driving way Gear/Sprocket transmission
Main motor 22*2KW,Frequency Speed Control
Pump motor for cutter 11KW


PLC Control System

 Inverter Schneider Electric/DELTA (Taiwan brand)
Touch Screen WEINVIEW(Taiwan brand)
Encoder KOYO (Japan brand) or OMRON (Japan brand)
Control Voltage 24V

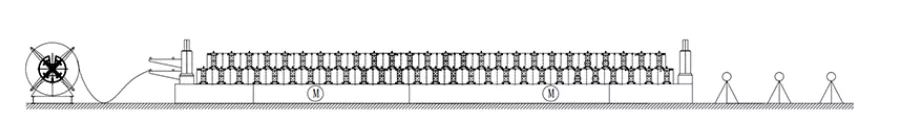

Work Flow

5T Hydraulic Decoiler→Manual Pre-Cutter Device→Feeding Guide Device→Roll Forming System→Hydraulic Post Cutter Device→AUTO Exit Rack
