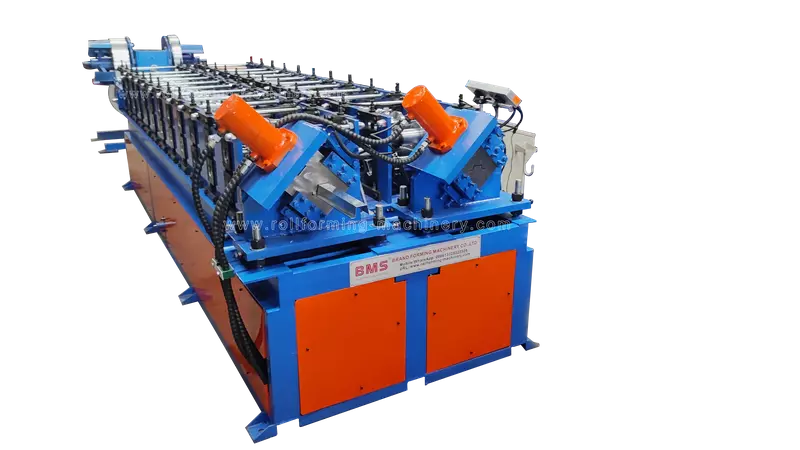

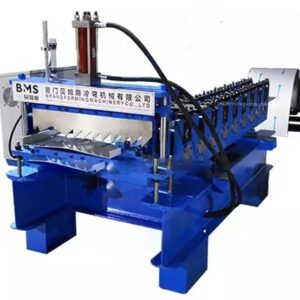

Profile
| No. |
Main Parameters |
Roll Forming Mill Parameters |
| 1. |
Feeding Size |
93mm& 49mm |
Forming Stations |
12+12 |
| 2. |
Profile Size Tolerence |
±1mm |
Base |
H450 |
| 3. |
Material Thickness |
0.5-0.85mm |
Side Wall Thickness |
Q235 t18mm |
| 4. |
Forming Speed |
15-20m/min |
Shaft |
40# Steel, Shaft Diameterφ75 |
| 5. |
Application Material |
Galvanized Steel Coils |
Roller |
Cr12, Heat Treatment, HRC58-62 |
| 6. |
Yield Strength |
235-345Mpa |
Forming Speed |
15-20m/min |
| 7. |
Length of Tolerence |
±1mm（6M） |
Main Motor Power |
7.5KW, K Series |
| 8. |
Product Speed |
15-20m/min |
Chain |
ZIQIANG |
| 9. |
Effective Size |
As Customer Design |
Screw Bolts |
Grade 8.8 |
| 10. |
Control System |
PLC Control System |
Punching Shear |
Cr12MoV Hydraulic Post Cutter |
| 11. |
Testing Material |
BMS Will Provide The Size of Feeding Material to Purchase That 2 Weeks Before Machine Testing |
Work Flow
Decoiler→ Feeding Guide Device→ Leveling Device→ Roll Forming Mill→ Hydraulic Post Cutter→ Exit Rack (3M)→ Hydraulic System→PLC Control System
Roll Forming Mill Parameters
Forming Stations: 12+12
Base: H450
Side Wall Thickness:Q235 t18mm
Shaft: 40# steel, Shaft Diameterφ75
Roller: Cr12, Heat Treatment, HRC58-62
Forming Speed: 15-20m/min
Main Motor Power: 7.5KW
Screw Bolts: Grade 8.8
Punching Shear: Cr12MoV Hydraulic Post Cutter
