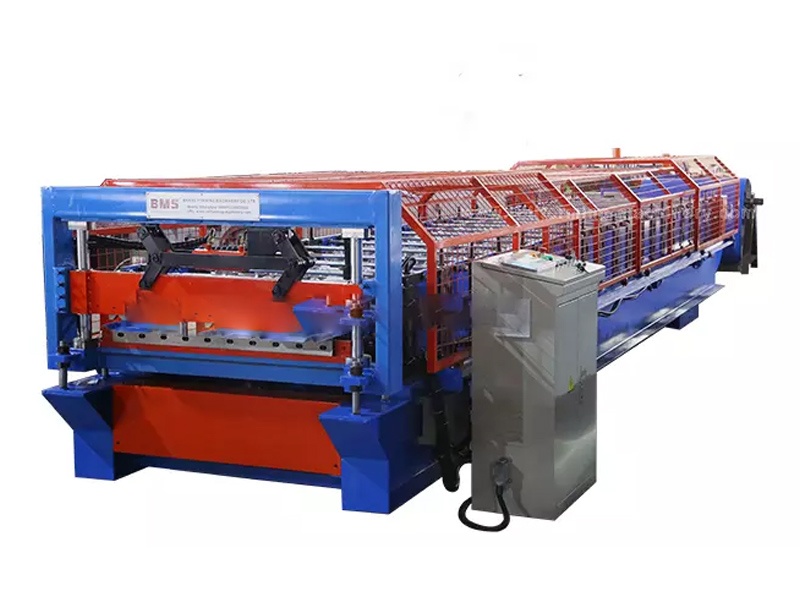

AG Panel Roll Forming Machine 0.3-0.8MM with Safety Cover

AG Panel Roll Forming Machine 0.3-0.8MM with Safety Cover

Hot sales in USA/Canada

Profile


Product Description
No.              Main Parameters                  Roll Forming Mill Parameters
1. Material Thickness 0.3-0.8mm Forming Stations 20Steps
2. Feeding Width According to the drawings Body Frame H450
3. Application Material GI,GL, color-coated sheet, galvanized sheet Side Wall Thickness Q235 t18mm
4. Electrical Standard 220V/60Hz/3Ph Shaft Diameter 45#Steel, φ75mm
5. Cutter material

Cr12MoV

Main Motor Power 7.5KW
6. Yield Strength 350-550Mpa Screw Bolts Grade 8.8
7. Forming Speed 15-20m/min Effective Width 914.4mm
8. Control System PLC Control System Roller

Gcr15, Heat treatment HRC58—62

9. Hydraulic Motor 4KW Machine Color Blue+Black+Orange
10. Testing Material BMS Will Provide The Size of Feeding Material to Purchase that 2 Weeks Before Machine Testing

Work Flow

Decoiler  → Feeding Device→ Main Roll Forming Mill → Hydraulic Post Cutting Device  →  PLC Control System → Hydraulic Station→Exit Rack*3
