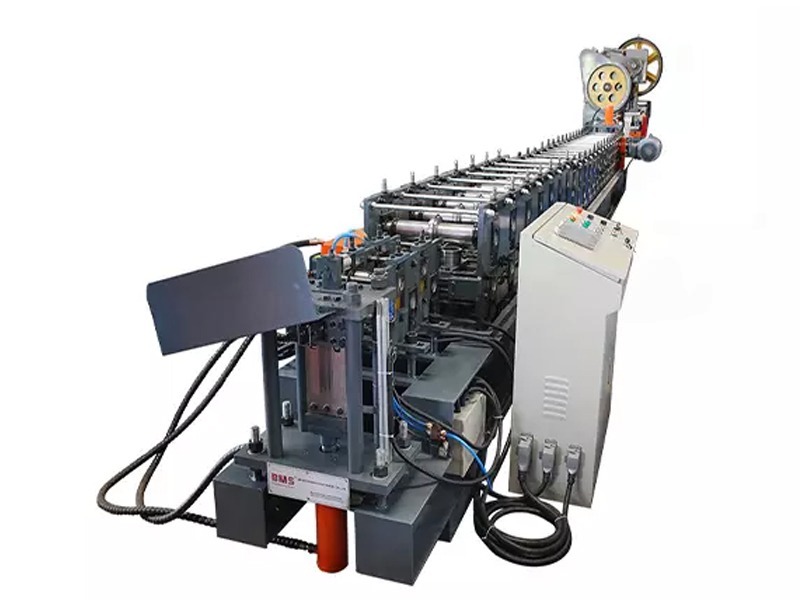

Profile
| No. |
Main Parameters |
Roll Forming Mill Parameters |
| 1. |
Effective Width |
41mm |
Forming Stations |
22-step |
| 2. |
Effective Width Tolerance |
±0.5mm |
Base |
H450 |
| 3. |
Material Thickness |
2.0-2.8mm |
Side Wall Thickness |
Q235 t18mm |
| 4. |
Inspection Thickness |
2.0mm |
Shaft Diameter |
φ75/85mm |
| 5. |
Application Material |
Galvanized Sheet(GI)
Cold Roll Steel(CRC) |
Main Motor Power |
15 KW |
| 6. |
Yield Strength |
Q235-Q550Mpa |
Screw Bolts |
Grade 8.8 |
| 7. |
Product Speed |
12-18m/min |
Tie Rod |
ф22 Galvanized |
| 8. |
Effective Size |
As Customer Design |
Roller |
GCr15(=EN31 steel), precision machined, hard Chrome Coated |
| 9. |
Control System |
PLC Control System |
Processing Mode |
CNC lathes, Hear Treatment, hard Chrome Coated, with thickness 0.04mm |
| 10. |
Testing Material |
BMS Will Provide The Size of Feeding Material to Purchase That 2 Weeks Before Machine Testing |
Work Flow
Decoiler→Leveling Device→Punching Machine→Hydraulic Pre-cutting device→Roll Forming System→Hydraulic Post Cutter→Exit Rack
