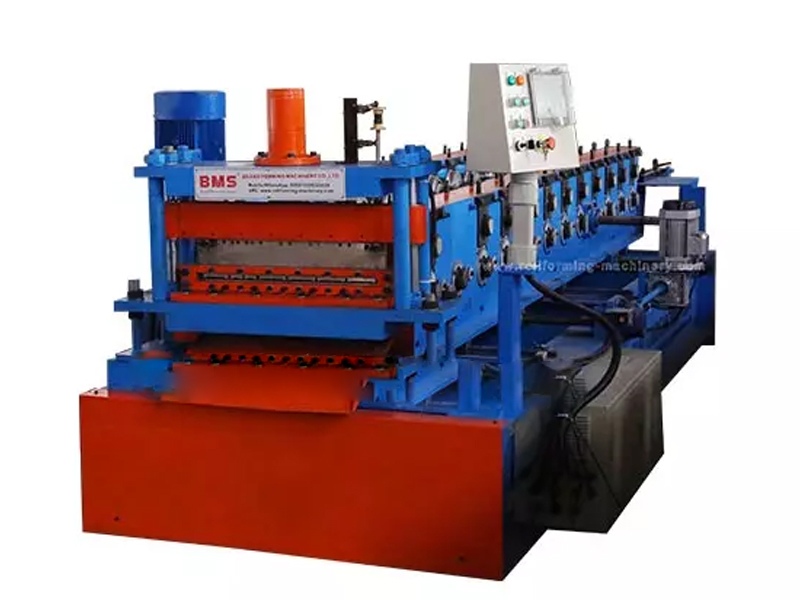

Automatic Size Changing Type Cable Tray Cover Roll Forming Machine with Taiwan Quality

Automatic Size Changing Type Cable Tray Cover Roll Forming Machine with Taiwan Quality

Automatic Size Changing Type Cable Tray Cover Roll Forming Machine with Taiwan Quality

Automatic Size Changing Type

Profile



No.              Main Parameters                 Roll Forming Mill Parameters
1.Material Thickness0.6-2.5mmForming Stations20-step
2.Feeding WidthAccording to the drawingBody FrameH450
3.Application MaterialGalvanized CoilSide Wall Thickness25mm
4.Electrical Standard380V50Hz/3PhShaft Diameter45# Steel, φ75/90mm
5.Hydraulic  Decoiler Diameter5T-1250MMMain Motor Power11*4 KW
6.Yield Strength235-395MpaScrew BoltsGrade 8.8
7.Forming Speed15-20m/minEffective Width100-600mm
8.Control SystemPLC Control SystemRollerGcr15 Steel, precision machined
9.Hydraulic Motor5.5KWMachine ColorBlue+Black+Orange
10.Testing MaterialBMS Will Provide The Size of Feeding Material to Purchase that 2 Weeks Before Machine Testing

Work Flow

Hydraulic Decoiler (5Tons) → Leveling/Feeding Guide/Punching Device→ Main Roll Forming Mill → Hydraulic Post Cutting Device  → Exit Rack*2 → PLC Control System → Hydraulic Station
