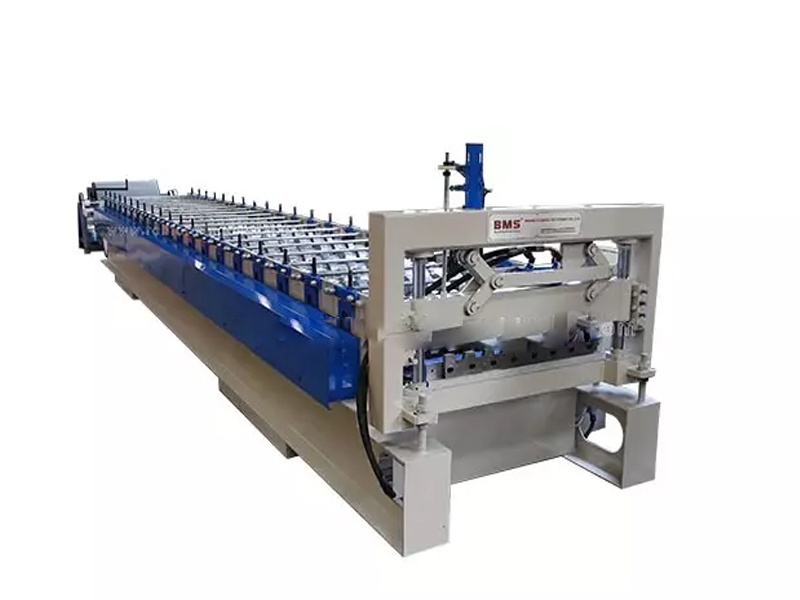

High Precision Wall Cladding Panel Roll Forming Machine YX24-90-630

High Precision Wall Cladding Panel Roll Forming Machine YX24-90-630

High Precision Wall Cladding Panel Roll Forming Machine YX24-90-630

The machine produced profiles suitable for roofing, walling, ceilling, and building decoration appllication. With modern and trendy feature of this corrugated metal sheets as well as seamless quality, it is another excellent option for architerctural design and decoration.

Profile

No.               Main Parameters                  Roll Forming Mill Parameters
1. Material Thickness 0.35-0.42mm Forming Stations 20-step
2. Feeding Width 914mm Body Frame H400
3. Application Material Galvalume/galvanized sheet, PPGI Side Wall Thickness 18mm
4. Electrical Standard 380V50Hz/3Ph Shaft Diameter 45# Steel, φ70mm
5. Manual Decoiler Diameter

508±30 mm

 Main Motor Power 7.5 KW
6. Yield Strength G550Mpa Screw Bolts Grade 8.8
7. Forming Speed 15-20m/min Effective Width As Customer Design
8. Control System PLC Control System Roller 45# steel, Hear Treatment, HRC58-62
9. Hydraulic Motor 3KW Machine Color Blue+Black+Orange
10. Testing Material BMS Will Provide The Size of Feeding Material to Purchase that 2 Weeks Before Machine Testing


Work Flow

Manual Decoiler (5Tons) → Feeding Guide Device → Main Roll Forming Mill → Hydraulic Post Cutter → PLC Control System  →Exit Rack (3M*2)

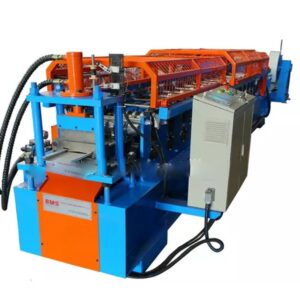

Related products
