Profile
| No. |
Main Parameters |
Roll Forming Mill Parameters |
| 1. |
Decoiler |
Manual/Hydraulic for Options |
Forming Stations |
15-step |
| 2. |
Cutter Material |
Cr12MOV |
Base |
H450 |
| 3. |
Material Thickness |
1.5-3.0mm |
Side Wall Thickness |
Q235 t30mm |
| 4. |
Hydraulic Motor |
7.5 KW |
Shafts |
45#,φ80mm,φ75 |
| 5. |
Application Material |
Galvanized Sheet |
Main Motor Power |
22 KW |
| 6. |
Yield Strength |
345-550Mpa |
Screw Bolts |
Grade 8.8 |
| 7. |
Forming Speed |
25m/min（Without Punching & Cutting Speed) |
Tie Rod |
ф22 Galvanized |
| 8. |
Effective Size |
As Customer Design |
Roller |
GCr15(=EN31 steel), precision machined, hard Chrome Coated |
| 9. |
Control System |
PLC Control System |
Processing Mode |
CNC lathes, Hear Treatment, hard Chrome Coated, with thickness 0.04mm |
| 10. |
Testing Material |
BMS Will Provide The Size of Feeding Material to Purchase That 2 Weeks Before Machine Testing |
Work Flow
Decoiler→ Feeding Guide Device → Punching Device → Roll Forming Mill→ PLC System Hydraulic → Hydraulic Post-cutting Device→
Exit Rack
Machine Components Display

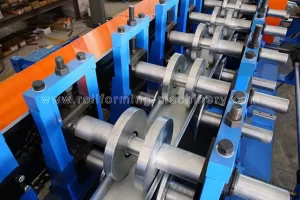

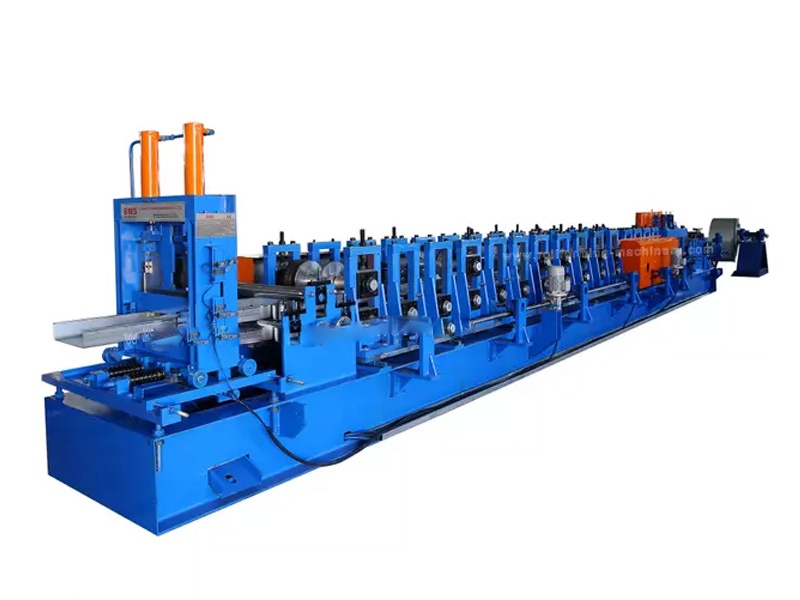

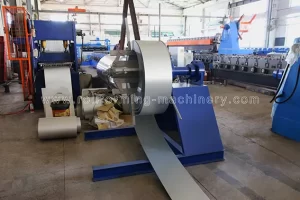

Decoiler Roll Forming Mill

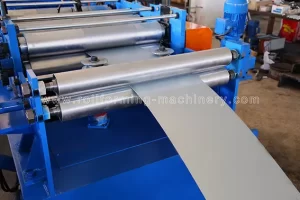

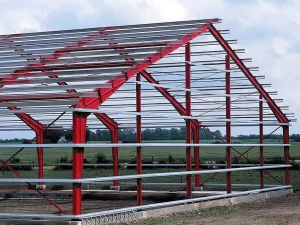

Feeding Guide Device Product Application Case
Machine Produced Products
