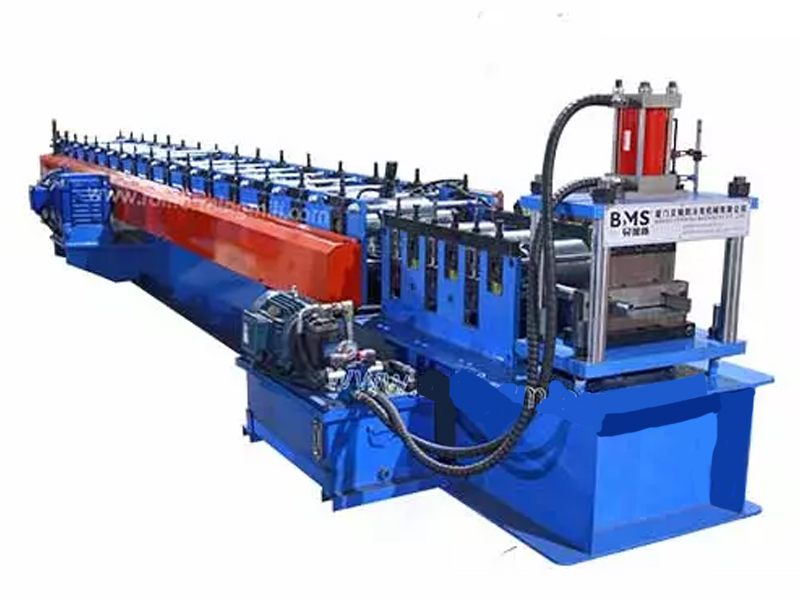

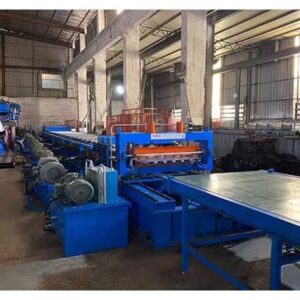

Steel Deck Roll Forming Machine 1.5-2.5mm

Profile

Product Description

Material	Applicable material	Galvanized sheet
	Material thickness	1.5-2.5mm
	With yield strength	Q235
Coil	Feeding width	312mm
	Coil ID range	508mm±30mm
	Capacity	Max. 5 Ton.
Machine	Base Frame	H350 type steel by welding.
	Side wall thickness	Q235 t18mm
	Roller Material	Bearing steel GCr15(=EN31 steel), precision machined,hard Chrome Coated
	Roller station	16-steps to form
	Shaft diameter	ф75mm,High Frequency Processing
Cutter	Hardness	Heat treatment to HRC58-62 degree
Cutter	Cutting tolerance	≤±1mm
Power	Driving way	Gear/Sprocket transmission
	Main motor	15KW,Frequency Speed Control
	Pump motor for cutter	4KW
PLC Control System	Inverter	Shihlin
	Touch Screen	WEINVIEW(Taiwan brand)
	Encoder	KOYO (Japan brand) or OMRON (Japan brand)
	Control Voltage	24V

Features

1.Produced thin steel deck(0.4-1.2mm) can consume less concrete and shoring support thus saves on construction material, underside design is aesthetically pleasing and saves on costly materials for decoration. If upgrade the machine to work for thick material 1.5-3mm,the produced steel deck can be used as logistics steel platforms with high flatness requirements (no more than 3mm to meet the working scene of intelligent mobile robot AGV/IGV).

2. Optional vertical ribs or web overall embossing to increase strength.

3. The roller is quenched after fine machining with GCr15 bearing steel, and Hard-Chromed for long working life more than 10years.

4.Optional automatic stacker,improve working efficiency, save labor cost, and help you improve competitive advantage.

Work Flow

5T Hydraulic Decoiler→Manual Pre-Cutter Device→Feeding Guide Device→Roll Forming System→Hydraulic Post Cutter Device→Exit Rack
