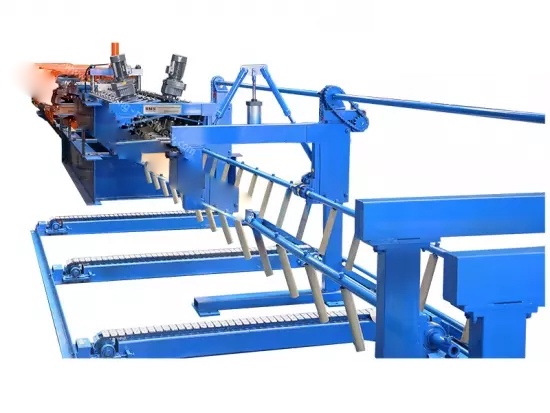

Patented Comflor Composite Floor Deck Roll Forming Machine for 3 In1 Profile

Composite Floor Deck Roll Forming Machine (Steel Decking Sheet Making Machinery) is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling the coil, continuous rolling and cold-forming, automatically cut to the size and output the finished panel.

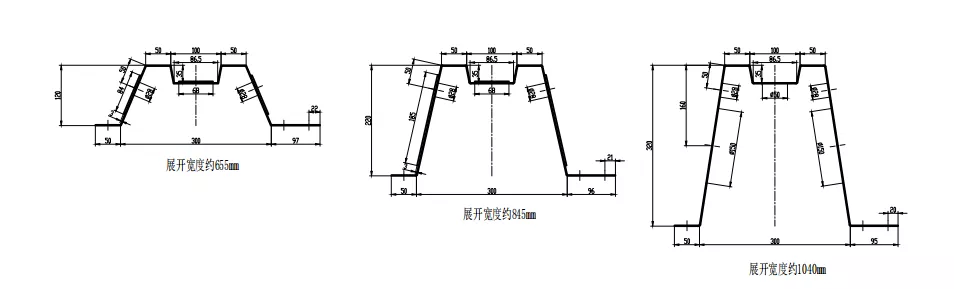

Profile Drawing

Effective width tolerance:-0/+5mm

Other section tolerance:+/-0.5mm

Material:

Feeding Material Width: 655mm & 845mm & 1040mm

Material Thickness: 1.5mm

Applicable material: Galvanized Sheet, G450Mpa Yield Strength

Work Flow:

Decoiler→Feeding Device→leveling Device→Hydraulic Punching Machine→Hydraulic Pre Cutting Device→Feeding Guide Device→Roll Forming Mill→Hydraulic Post Cutting Device→Embossing Device→AUTO Stacker Device

Decoiler →Feeding Device →Main Forming Machine → Hydraulic Post Cutter→Exit Rack.

Technical Parameter

No.	Main Parameters		Roll Forming Mill Parameters
1.	Net Weight	20 Tons	Base Frame	H450
2.	Electric Standard	380V/50Hz/1Ph	Forming Station	30 Forming + 3 Beading
3.	Material thickness	1.5MM	Shafts	45#steel ,φ75/65mm
4.	Yield Strength	G450Mpa	Roller	45#steel ,heat treatment HRC58-62 Degree
5.	Effective Size	As Customer Design	Main Motor Power	22KW
6.	Control System	PLC Control System	Forming Speed	15-18M/Min
