Profile
| No. |
Main Parameters |

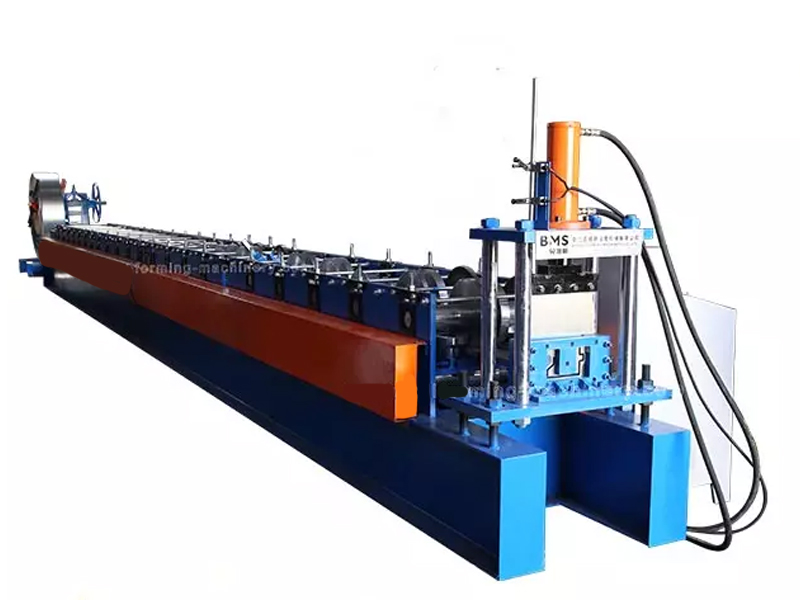

Roll Forming Mill Parameters |
| 1. |
Material Thickness |
2.0-4.0mm |
Forming Stations |
22-steps |
| 2. |
Feeding Width |
360mm |
Body Frame |
H450 |
| 3. |
Application Material |
Galvanized Sheet |
Side Wall Thickness |
25mm |
| 4. |
Electrical Standard |
380V50Hz/3Ph |
Shaft Diameter |
45# Steel, φ75mm |
| 5. |
Decoiler |
Manual/Hydraulic for Options |
Main Motor Power |
30KW*2 |
| 6. |
Yield Strength |
235-345Mpa |
Screw Bolts |
Grade 8.8 |
| 7. |
Forming Speed |
15m/min |
Effective Width |
159mm |
| 8. |
Control System |
PLC Control System |
Roller |
45# Steel,precision machined |
| 9. |
Hydraulic Motor |
7.5KW |
Machine Color |
Blue+Black+Orange |
| 10. |
Testing Material |
BMS Will Provide The Size of Feeding Material to Purchase that 2 Weeks Before Machine Testing |
Work Flow
Manual Decoiler (5Tons) → Leveling Device→ Main Roll Forming Mill → Hydraulic Post Cutting Device → PLC Control System → Hydraulic Station→Exit Rack
